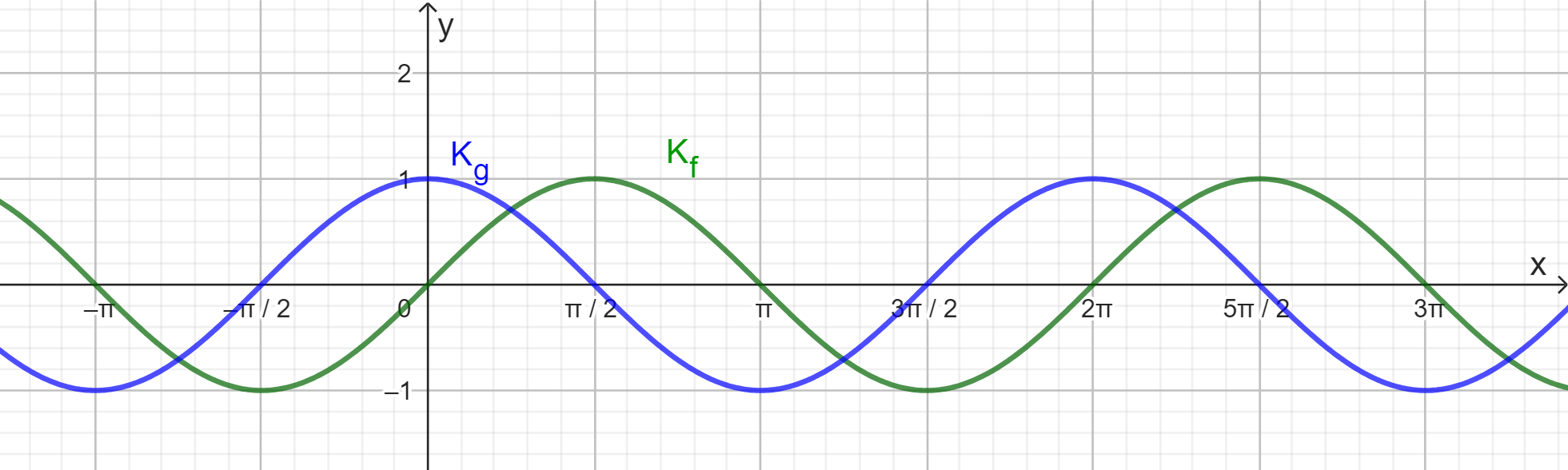

Lösung Skizzieren
Zuletzt geändert von Miriam Erdmann am 2024/07/19 12:01
| Winkel \(\alpha\) | -90° | -60° | -30° | 0° | 30° | 60° | 90° | 120° | 150° | 180° | 210° | 240° | 270° | 300° | 330° | 360° | 390° | 420° |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Bogenlänge \(x\) | \(-\frac{\pi}{2}\) | \(-\frac{\pi}{3}\) | \(-\frac{\pi}{6}\) | \(0\) | \(\frac{\pi}{6}\) | \(\frac{\pi}{3}\) | \(\frac{\pi}{2}\) | \(\frac{2\pi}{3}\) | \(\frac{5\pi}{6}\) | \({\pi}\) | \(\frac{7\pi}{6}\) | \(\frac{4\pi}{3}\) | \(\frac{3\pi}{2}\) | \(\frac{5\pi}{3}\) | \(\frac{11\pi}{6}\) | \({2\pi}\) | \(\frac{13\pi}{6}\) | \(\frac{7\pi}{3}\) |
| \(f(x)=\sin(x)\) | \(-1\) | \(\frac{-\sqrt{3}}{2}\) | \(-\frac{1}{2}\) | \(0\) | \(\frac{1}{2}\) | \(\frac{\sqrt{3}}{2}\) | \(1\) | \(\frac{\sqrt{3}}{2}\) | \(\frac{1}{2}\) | \(0\) | \(-\frac{1}{2}\) | \(\frac{-\sqrt{3}}{2}\) | \(-1\) | \(\frac{-\sqrt{3}}{2}\) | \(-\frac{1}{2}\) | \(0\) | \(\frac{1}{2}\) | \(\frac{\sqrt{3}}{2}\) |
| Winkel \(\alpha\) | -90° | -60° | -30° | 0° | 30° | 60° | 90° | 120° | 150° | 180° | 210° | 240° | 270° | 300° | 330° | 360° | 390° | 420° |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Bogenlänge \(x\) | \(-\frac{\pi}{2}\) | \(-\frac{\pi}{3}\) | \(-\frac{\pi}{6}\) | \(0\) | \(\frac{\pi}{6}\) | \(\frac{\pi}{3}\) | \(\frac{\pi}{2}\) | \(\frac{2\pi}{3}\) | \(\frac{5\pi}{6}\) | \({\pi}\) | \(\frac{7\pi}{6}\) | \(\frac{4\pi}{3}\) | \(\frac{3\pi}{2}\) | \(\frac{5\pi}{3}\) | \(\frac{11\pi}{6}\) | \({2\pi}\) | \(\frac{13\pi}{6}\) | \(\frac{7\pi}{3}\) |
| \(f(x)=\cos(x)\) | \(0\) | \(\frac{1}{2}\) | \(\frac{\sqrt{3}}{2}\) | \(1\) | \(\frac{\sqrt{3}}{2}\) | \(\frac{1}{2}\) | \(0\) | \(-\frac{1}{2}\) | \(\frac{-\sqrt{3}}{2}\) | \(-1\) | \(\frac{-\sqrt{3}}{2}\) | \(-\frac{1}{2}\) | \(0\) | \(\frac{1}{2}\) | \(\frac{\sqrt{3}}{2}\) | \(1\) | \(\frac{\sqrt{3}}{2}\) | \(\frac{1}{2}\) |
